Understanding Gear Reducers: Types, Operation, Selection, And Maintenance

Introduction

Gear reducers, also known as gearboxes or speed reducers, are essential components in many mechanical systems. They play a crucial role in modifying the speed and torque of rotating machinery, ensuring that machines run efficiently and effectively. Gear reducers are used across various industries, from automotive applications to heavy machinery and robotics. Understanding how they work, the different types available, how to select the right one, and the best maintenance practices is vital for any engineer or technician.In this article, we will explore gear reducers in detail, focusing on their types, operation,and the importance of selection process.

Chapter 1: What is a Gear Reducer?

A gear reducer is a mechanical device used to reduce the speed of a motor's output shaft while increasing the torque. Gear reducers are often used to match the speed and power requirements of an application, converting high-speed, low-torque output from a motor to low-speed, high-torque output.

Working Principle

The primary function of a gear reducer is to alter the speed and torque of a rotating shaft. This is achieved through a system of interlocking gears. A small gear, driven by the motor, meshes with a larger gear to reduce the speed of rotation. At the same time, the torque increases in proportion to the reduction in speed.

Gear reducers are commonly used in vehicles to reduce engine speeds and in machinery to control speeds for various operations. By reducing the speed, they ensure that the machinery operates at its optimal efficiency without overloading the system.

Applications

· Automobiles: Gear reducers help in transferring power from the engine to the wheels, ensuring optimal speed and power delivery.

· Industrial Machinery: Gear reducers are used to control the speed of conveyor belts, mixers, pumps, and other machinery.

· Robotics: In robotic systems, gear reducers are used to control motor speed and torque, allowing precise movement and control.

Chapter 2: How Gear Reducers Work

Understanding how gear reducers operate is essential for selecting the correct type for any application.

Gear Ratios

A gear ratio is the ratio between the speeds of two meshing gears. The gear ratio is a fundamental concept that determines the final output speed and torque. For instance, a 2:1 ratio means that for every two rotations of the driving gear, the driven gear will rotate once. In this example, the speed is halved, and the torque is doubled.

For high-speed applications where low torque is required, a higher gear ratio may be used. Conversely, for high-torque applications, a lower gear ratio might be preferred.

Torque Transformation

Torque is transformed through the gear reduction process. When the speed is reduced by the gear reducer, the torque is increased proportionally, assuming power remains constant. For example, a 3:1 reduction in speed will increase torque by three times.

However, it’s important to note that this process does not change the total power output; rather, it redistributes the power between speed and torque.

Drive and Driven Gears

The drive gear is powered by the motor, while the driven gear receives the output of the drive gear. The interlocking of these gears in the gear reducer ensures that power is transferred efficiently.

Chapter 3: Types of Gear Reducers

Gear reducers come in a wide variety of types, each with specific advantages for certain applications. Below, we will discuss the most common types.

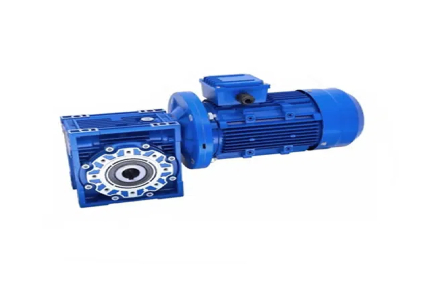

1. Worm Gear Reducers

Worm gear reducers are known for their ability to achieve very high reduction ratios in a compact size. They consist of a worm (a screw-like gear) that meshes with a larger gear, often referred to as the worm wheel.

· Advantages: High reduction ratios, compact design.

· Disadvantages: Non-reversible operation, lower efficiency.

2. Planetary Gear Reducers

Planetary gear reducers are highly efficient and compact systems where multiple gears orbit around a central gear (sun gear). These reducers can handle high torque and are used in high-performance applications.

· Advantages: High efficiency, compact size, high torque capacity.

· Disadvantages: More expensive than other types.

3. Spur Gear Reducers

Spur gear reducers are the most straightforward and commonly used type of gear reducers. They consist of parallel gears that mesh directly. Spur gears offer simplicity and high efficiency in many applications.

· Advantages: Simple design, high efficiency.

· Disadvantages: Noisy at high speeds.

4. Bevel Gear Reducers

Bevel gear reducers are used to change the direction of rotation, typically from horizontal to vertical. They are widely used in heavy-duty machinery where angular power transfer is needed.

· Advantages: Allows for changes in rotational direction.

· Disadvantages: Typically more complex and require precision manufacturing.

5. Cycloidal Gear Reducers

Cycloidal gear reducers are designed to reduce backlash and are often used in applications that require precise movement, such as robotics and CNC machinery.

· Advantages: Eliminate backlash, precise operation.

· Disadvantages: More complex design, higher cost.

6. Helical Gear Reducers

Helical gear reducers are known for their quiet operation and are commonly used in medium to high-speed applications. The gears have teeth that are cut at an angle, allowing for smoother meshing.

· Advantages: Quiet operation, durable.

· Disadvantages: Can be expensive.

7. Hypoid Gear Reducers

Hypoid gear reducers are similar to bevel gears but with shafts that do not intersect. They provide smoother operation and are typically used when the input and output shafts must be offset.

· Advantages: Smooth operation, non-intersecting shafts.

· Disadvantages: Can be more complex.

8. Magnetic Gear Reducers

Magnetic gear reducers use permanent magnets to transmit power without direct contact between gears. This reduces wear and tear, providing low maintenance needs.

· Advantages: Non-contact operation, low maintenance.

· Disadvantages: Limited torque capacity, higher cost.

Chapter 4: Gear Reducer Selection Criteria

Selecting the right gear reducer is essential for optimizing performance and extending the lifespan of machinery. Here are some key factors to consider:

1. Torque Requirements

Before selecting a gear reducer, it’s crucial to understand the torque requirements of the application. Ensure that the selected reducer can handle the necessary load without overloading or underperforming.

2. Speed Requirements

Consider the required output speed. Different gear reducers offer varying reduction ratios, and selecting the correct one will ensure the system operates within the desired speed range.

3. Shaft Configuration

Different gear reducers have different shaft configurations, such as orthogonal, coaxial, or parallel shafts. It’s essential to select the reducer with the appropriate shaft configuration that matches the system’s setup.

4. Motor Performance

Consider factors such as shock loads and cyclic loads when selecting a gear reducer. These factors will influence the durability and efficiency of the gearbox.

5. Operational Efficiency

Opt for a gear reducer that offers long-term operational efficiency. Factors such as energy consumption, maintenance needs, and initial cost should be evaluated.

Conclusion

Gear reducers are essential components in many machinery systems, helping to control speed and increase torque. With a variety of types available, selecting the right gear reducer is crucial for optimal performance. Regular maintenance, including proper lubrication and contamination prevention, ensures long-term efficiency and reduces downtime.

By following the selection criteria and maintenance best practices outlined above, you can ensure that your gear reducer operates effectively and lasts for many years to come. Always consult with professionals to make the right choice for your specific needs.
