F87
TAIXING

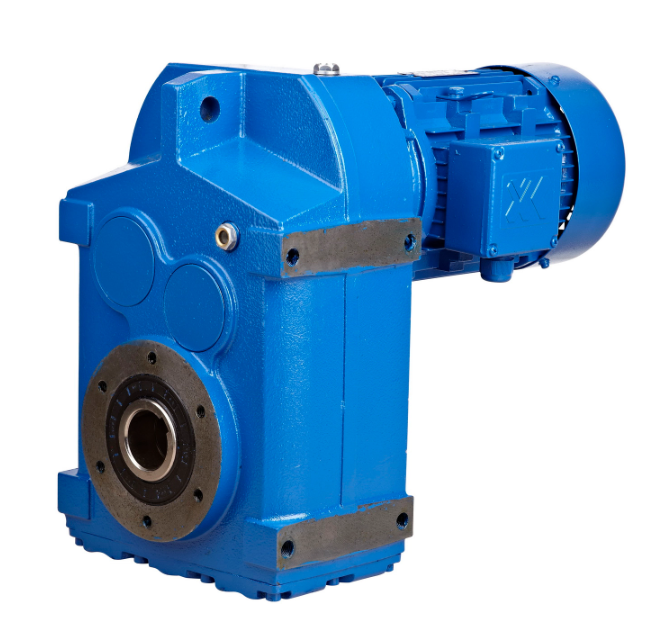

Our F series shaft mounted helical gear motor is a high-performance, internationally compliant drive solution engineered exclusively for beverage production and processing lines. Developed with global technical standards, this parallel shaft helical gear reducer integrates precision machining, high-strength materials, and optimized gear design to meet the strict demands of 24/7 continuous operation in beverage manufacturing. With a complete model range from F37 to F157, our gear motors support flexible mounting configurations including shaft mounting, flange mounting, and foot mounting, seamlessly adapting to diverse equipment layouts in beverage plants. With power coverage up to 90KW and peak torque up to 18000N.m, this series delivers reliable, energy-efficient drive performance for every stage of beverage production, from raw material handling to final packaging.
Our parallel shaft helical gear reducer achieves a transmission efficiency of up to 95%, significantly cutting energy consumption for long-running beverage production lines. Precision-ground gears (DIN 6 accuracy) minimize vibration and keep operating noise below 75dB, creating a compliant, low-noise production environment for beverage facilities.
Engineered for space-constrained beverage processing workshops, this shaft mounted helical gear motor for beverage industry saves valuable installation space while delivering exceptional overload resistance. The high-strength cast iron housing and carburized quenched gears ensure durable performance even under round-the-clock operation, with power ranging from 0.18KW to 200KW to match diverse equipment needs.
Every unit is precision machined to guarantee strict axis parallelism and positioning accuracy, paired with high-quality motors to form a fully integrated mechatronic drive system. This design eliminates complex on-site assembly, reduces maintenance downtime, and ensures consistent product quality for high-volume beverage production.
Parameter | Detailed Specification |
Model Range | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 |
Mounting Options | Shaft Mounting, Flange Mounting, Foot Mounting |
Housing Material | HT200/HT250 High-Strength Cast Iron |
Gear Material | 20CrMnTi Alloy Steel, Carburizing & Quenching Treatment |
Gear Surface Hardness | HRC58-62 |
Gear Machining Precision | DIN 6 Grade (Precision Grinding) |
Input/Output Shaft Material | 40Cr Alloy Steel |
Rated Input Power | 0.18KW × 200KW |
Gear Ratio Range | 3.81 × 270.68 |
Max Output Torque | 200N.m × 18000N.m |
Noise Level | ≤75dB |
Certification | CE, ISO9001, BV, SGS |
INPUT POWER AND TORQUE (MAX)
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating (kw) | 0.183 | 0.18-3 | 0.18-5.5 | 0.37-5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
(Ratio) | 3.81-128.51 | 5.06-170.27 | 5.18-199.70 | 4.21-196.46 | 4.20-243.46 | 4.12-270.68 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-198.14 |
Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Our shaft mounted gear motor for beverage processing is widely deployed across core beverage production scenarios, including bottled water and carbonated beverage filling lines, juice and dairy beverage aseptic processing systems, beer brewing auxiliary equipment, beverage mixing and blending systems, bottle conveying and sorting lines, and beverage packaging & palletizing equipment. It also adapts to supporting equipment in food and beverage auxiliary production, meeting the strict stability and hygiene requirements of the beverage sector.
As a professional drive solution manufacturer with global certifications, TAIXING adheres to strict quality control standards throughout the production cycle of our F series parallel shaft helical gear reducer. All core components are made of premium alloy steel and high-strength cast iron, with gear surfaces undergoing high-frequency heat treatment and precision grinding. We use industry-renowned C&U bearings and NAK oil seals to ensure long-term leak-free operation. Every unit undergoes rigorous load testing, noise testing, and precision inspection before delivery, fully complying with international quality standards.
MOQ: 1 set, with 100 sets of standard models in stock for immediate delivery
Customization: Support custom gear ratios, mounting configurations, and motor matching for your beverage equipment requirements
Packaging: Standard export wooden cases with moisture-proof and shock-proof treatment
Delivery Time: 3-5 working days for standard models, 10-15 working days for customized orders
Shipping: Support sea freight, air freight, and international express delivery as required
Payment Terms: Telegraphic Transfer (TT), irrevocable Letter of Credit (L/C) at sight
Yes, we support custom gear ratio design and manufacturing to match the speed and torque requirements of your unique beverage processing equipment.
Our F series gear motor can be paired with standard asynchronous motors, brake motors, variable frequency motors, and food-grade stainless steel motors for beverage production.
We recommend industrial gear oil with viscosity grades VG220, VG320, or VG460, selected according to your operating temperature and load conditions.
