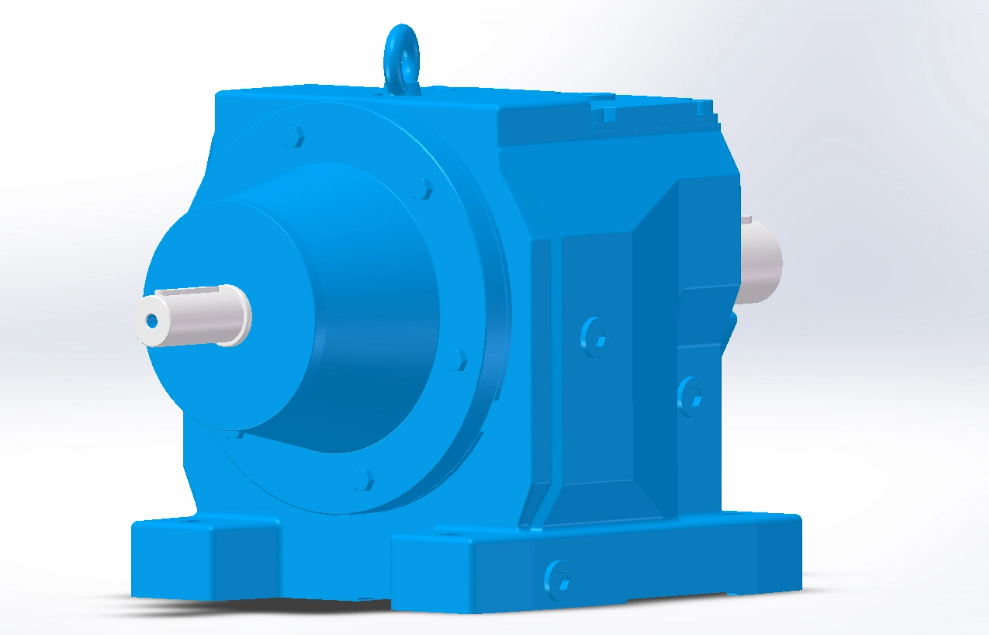

Our R-Series Coaxial Inline Helical Gearbox is a highly standardized, modular-designed power transmission product, specially optimized for packaging automation and various industrial production lines. This inline helical gear reducer adopts a coaxial transmission layout, with high-precision helical gear transmission to achieve ultra-high transmission efficiency and stable power output. Originated from China, our products have obtained CE, ISO9001, SGS and BV certifications, and are widely recognized by equipment manufacturers, system integrators and industrial production enterprises around the world. With compact structure, high load capacity and long service life, it is the ideal choice for automated production lines that require continuous and reliable power transmission.
This coaxial gearbox for packaging adopts an optimized inline coaxial structure, with 2-stage and 3-stage helical gear transmission solutions. The transmission efficiency reaches up to 96% for 2-stage units and 94% for 3-stage units, which greatly reduces energy loss during power transmission and effectively lowers the operating cost of industrial production lines.
The housing of our R-Series inline helical gearbox is made of HT200/HT250 high-strength cast iron, with strong impact resistance and vibration damping performance. The core gears are made of 20CrMnTi alloy steel, with carburizing and quenching heat treatment, surface hardness reaching HRC58°-62°, and precision grinding up to DIN6 standard. The input and output shafts are made of 40Cr alloy steel, with strong radial loading capacity, ensuring stable operation under long-term heavy load conditions.
This highly modular coaxial helical gear reducer supports multiple installation methods, including flange mounting and foot mounting, to adapt to different equipment installation scenarios. The full series covers a wide range of transmission ratios, power ratings and torque outputs, which can be flexibly matched with various types of motors, fully meeting the diversified needs of different industrial applications.
R series Coaxial gearbox | |
Model | R37/47/57/67/77/87/97/107/137/147/167 RX31/51/61/71/81/91/101/121/151 |
Mounting Position | Flange Mounting, Foot Mounting |
Efficiency | 94%-96% 2 stage (ratio: 5-24.8) = 96% 3 stage (Ratio: 27.2-264) = 94% |
Housing material | HT200/HT250 high-strength cast iron |
Gear material | 20CrMnTi |
Surface hardness of gears | HRC58°-62 ° |
Input / Output shaft material | 40Cr |
Machining precision of gears | Accurate grinding, DIN6 (Ground ) |
Lubricating oil | Gear oil (VG220, VG320, VG460) |
Heat treatment | Carburizing and quenching |
Brand of bearings | C&U bearing |
Brand of oil seal | NAK or other brand |
Temp. rise (MAX) | 40 ℃ |
Temp. rise (Oil)(MAX) | 50 ℃ |
Size | 17 | 27 | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 137 | 147 | 167 |
Structure | R RF | ||||||||||||
Input power rating (kw) | 0.18- 0.75 | 0.18- 3 | 0.18 3 | 0.18- 5.5 | 0.18- 7.5 | 0.18- 7.5 | 0.18- 11 | 0.55- 22 | 0.55- 30 | 2.2-45 | 5.5-55 | 11-90 | 11-160 |
（Ratio） | 3.83- 74.84 | 3.37- 135.09 | 3.41- 134.82 | 3.83- 167.65 | 4.39- 189.69 | 4.29- 165.48 | 5.21- 195.24 | 5.36- 246.54 | 4.49- 264.42 | 5.06- 245.5 | 5.15- 223.34 | 5.00- 163.46 | 8.77- 196.41 |
Max torque (N.m) | 85 | 130 | 200 | 300 | 450 | 600 | 820 | 1550 | 3000 | 4300 | 8000 | 13000 | 18000 |
Our R-Series Coaxial Inline Helical Gearbox is specially optimized for packaging automation equipment, and is also widely used in a wide range of industrial fields. Core application scenarios include transport and packaging lines, conveyor & material handling systems, food processing & beverage production lines, automatic production lines, mining & quarry equipment, crusher & cement production lines, construction & metal processing, plastic & chemical industry, etc. It is especially suitable for continuous operation scenarios of automated production lines, providing stable and efficient power transmission support.
TAIXING is a BV-verified professional industrial gearbox manufacturer, with a modern production base located in Lishui City, Zhejiang Province, China. Our inline helical gear reducers are produced in strict accordance with international quality standards, with full-cycle quality control covering raw material incoming inspection, precision machining, heat treatment, assembly, and finished product performance testing. We use high-quality C&U bearings and NAK oil seals for all products, ensuring the reliability and service life of the gearbox. With a monthly production capacity of 5000 sets, we can stably meet the bulk order demands of industrial buyers and large-scale production enterprises.
Stock Status: 200 PCS of standard RS97 models in stock, full series models support mass and customized production
Minimum Order Quantity: 1 PCS for standard models
Packaging: Small size models with standard export cartons; large size models with standard export plywood cases
Lead Time: Within 20-25 working days after receiving advance payment for bulk/customized orders; in-stock models ship within 3 working days
Shipping Port: All main ports in China, supporting customized shipping solutions
The transmission efficiency of our R-Series coaxial gearbox is between 94% and 96%. The 2-stage unit (transmission ratio 5-24.8) has an efficiency of 96%, and the 3-stage unit (transmission ratio 27.2-264) has an efficiency of 94%, which can effectively reduce energy consumption.
Our inline helical gear reducer supports two mainstream installation methods: flange mounting and foot mounting, which can be flexibly selected according to the actual installation space and equipment structure.
We recommend using professional industrial gear oil for this coaxial helical gearbox, with optional viscosity grades VG220, VG320, VG460, which can be selected according to the actual working temperature and operating conditions.
