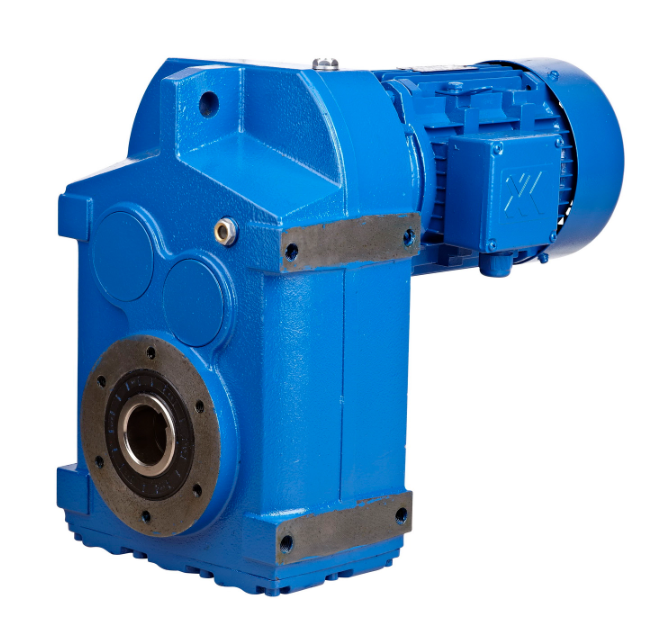

This parallel shaft helical gearbox features a compact modular design, wide torque range, and exceptional durability, engineered to withstand continuous heavy loads, corrosive atmospheres, and variable operating conditions common in chemical plants. Covering model sizes F37 to F157, this series supports power inputs from 0.18KW to 200KW, with a maximum output torque of 18000N.m and flexible gear ratio options up to 273, even reaching ultra-high ratios over 10,000 when combined with secondary reducers. With multiple mounting and output configurations, it seamlessly integrates with diverse chemical processing equipment, delivering reliable, energy-efficient drive performance for critical industrial operations.
Designed for the high-load demands of chemical processing, our heavy duty parallel shaft helical gearbox delivers exceptional torque output and overload resistance, with a reinforced high-strength housing and precision-machined alloy steel gears that withstand frequent shock loads and non-stop operation. All gears are made of 20CrMnTi alloy steel, carburized and quenched to HRC58-62 surface hardness, ensuring long service life even in harsh industrial environments.
This series offers multiple installation options including foot mounting, hollow shaft mounting, flange mounting, torque arm mounting, and small flange mounting, with both solid shaft and hollow shaft output designs to fit complex equipment layouts in chemical facilities. It can be paired with various motor types, including explosion-proof motors, variable frequency motors, brake motors, and standard industrial motors, fully meeting the safety and operational requirements of chemical processing.
Our parallel shaft speed reducer for chemical industry achieves a transmission efficiency of up to 96% for two-stage transmission and 94% for three-stage transmission, significantly reducing energy consumption and operating costs for long-running chemical operations. Precision ground gears (DIN 6 accuracy) minimize vibration and wear, extending maintenance intervals and reducing unplanned downtime for critical chemical production lines.
Parameter | Core Technical Data |
Product Series | F Series Parallel Shaft Helical Speed Reducer |
Model Range | F37 × F157 |
Structure Types | F (Foot-mounted Solid Shaft), FA (Hollow Shaft), FF (Flange-mounted Solid Shaft), FAF, FAZ |
Rated Input Power | 0.18KW × 200KW |
Standard Gear Ratio | 3.81 × 273 (with 4-pole motor) |
Ultra-High Gear Ratio | Up to 10,000+ (with combined reducer configuration) |
Max Output Torque | 18000N.m |
Transmission Efficiency | 96% (Two-stage), 94% (Three-stage), 85% (F+R Series Combined) |
Gear Machining Accuracy | DIN 6 Grade (Precision Grinding) |
Installation Orientation | Horizontal, Vertical |
Certification | CE, ISO9001, BV, SGS |
INPUT POWER AND TORQUE (MAX)
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating (kw) | 0.183 | 0.18-3 | 0.18-5.5 | 0.37-5.5 | 0.18-11 | 0.75-22 | 1.1-30 | 2.2-45 | 7.5-90 | 11-200 |
(Ratio) | 3.81-128.51 | 5.06-170.27 | 5.18-199.70 | 4.21-196.46 | 4.20-243.46 | 4.12-270.68 | 4.68-270.64 | 6.20-255.25 | 4.63-172.33 | 12.07-198.14 |
Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
F SERIES GEAR UNITS ARE AVAILABLE IN THE FOLLOWING DESIGNS
F…Y Foot-mounted Parallel shaft helical gear motor with solid shaft | F(FF.FA.FAF.FAZ)S.. Shaft input parallel shaft helical gear motor | FA…Y Parallel shaft helical gear motor with hollow shaft |
FAZ… Y Short-Flange mounted parallel shaft helical gear motor with hollow shaft | FF….Y Flange-mounted parallel shaft helical gear motor with solid shaft | FAZ..Y Flange-mounted parallel shaft helical gear motor with hollow shaft |
F(FF. FA. FAF. FAZ)…RF..Y… Combination Parallel shaft helical gear motor | F(FF.FA.FAF..FAZ)S..RF… Shaft input combination parallel shaft helical gear motor | F(FF..FA…FAF..FAZ)…Y The flange is required when client equip the motor by themselves or special motor |
Our heavy duty industrial speed reducer for chemical processing is an essential drive component for a wide range of heavy industrial and chemical processing scenarios, including chemical raw material conveying systems, chemical reactor mixing drives, fertilizer production equipment, petrochemical auxiliary processing units, paint and resin manufacturing lines, industrial wastewater treatment systems, metallurgical and mining chemical equipment, and power plant auxiliary systems. It is also widely used in printing and packaging, grain processing, and three-dimensional garage equipment where heavy-duty, reliable drive performance is required.
TAIXING is a professional industrial drive solution manufacturer with decades of experience in heavy-duty reducer production, serving enterprise users across global chemical and heavy industrial sectors. Our F series parallel shaft helical gear reducer is manufactured in strict compliance with international quality standards, with full-process quality control from raw material incoming inspection to finished product delivery. All core components undergo rigorous heat treatment, precision machining, and multi-stage performance testing, including load testing, noise testing, and sealing performance testing, to ensure reliable operation in harsh chemical environments. Our production facilities are certified to ISO9001, with all products meeting CE, BV, and SGS international standards.
MOQ: 1 unit, with 200 units of standard models in stock for rapid dispatch
Customization: Support custom shaft design, anti-corrosion surface treatment, explosion-proof configuration, and combined reducer design for special chemical processing requirements
Packaging: Heavy-duty export wooden cases with anti-corrosion, moisture-proof, and shock-proof protection for long-distance transportation
Delivery Time: 2-3 working days for standard models, 8-12 working days for customized orders
Shipping: Global sea freight, air freight, and international express options available
Payment Terms: Telegraphic Transfer (TT), irrevocable Sight Letter of Credit (L/C), and other negotiated payment methods for bulk orders
Yes, our F series reducer can be fully matched with various explosion-proof motors complying with international hazardous area standards, suitable for flammable and explosive chemical processing scenarios.
Absolutely. We can configure our F series reducer with a secondary reducer combination to achieve ultra-high gear ratios over 10,000, delivering the ultra-low speed and high torque required for chemical reactor mixing.
Yes, we offer specialized anti-corrosion surface treatment, sealing upgrades, and material customization for reducers operating in corrosive atmospheres, ensuring long-term stable performance.
