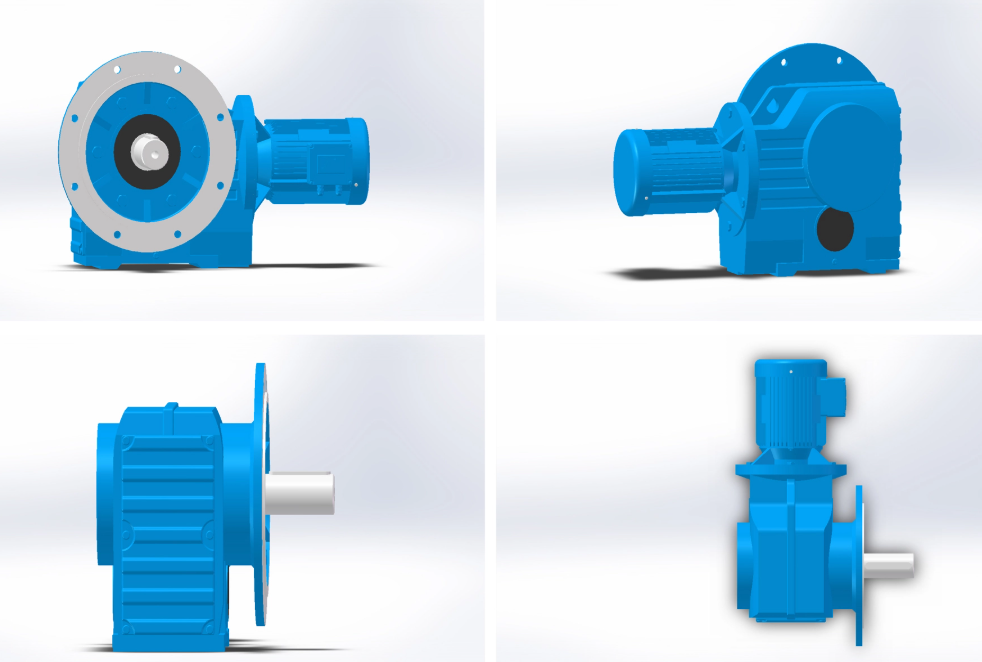

Featuring precision-engineered helical bevel gears, this right angle helical bevel gearbox delivers exceptional torque density, compact space-saving design, and reliable performance in harsh operating environments. With a fully modular design system and international quality compliance, it is the preferred choice for heavy industrial equipment manufacturers, engineering contractors, and system integrators requiring durable, high-performance right-angle power transmission.
The 90-degree right-angle output structure of our K series helical bevel gear reducer delivers an ultra-compact footprint, ideal for installations with tight spatial constraints, such as quarry equipment, agitators, and heavy material handling systems. This design eliminates unnecessary spatial waste while maintaining maximum power transmission performance.
Engineered with rigid tooth flank technology, our high torque bevel gear reducer supports output torque up to 50000N.m, with a power range of 0.18KW to 200KW, easily handling extreme loads of quarrying, mining, and heavy industrial processing. Precision-machined gears ensure even load distribution, preventing premature wear and failure under continuous heavy loads.
Our industrial right angle geared motor offers extensive mounting flexibility, including foot-mounted, flange-mounted, torque arm-mounted, and small flange-mounted configurations. It supports multiple input modes (direct motor connection, strap connection, flange connection) and output options (hollow shaft, solid shaft), enabling seamless integration into virtually any industrial system.
Manufactured to DIN6 precision grade, helical bevel gears ensure smooth meshing, low operational noise, and consistent performance, with an average transmission efficiency of 94%. The unit supports both clockwise (CW) and counterclockwise (CCW) rotation, with a wide operating temperature range of -15°C to +50°C, adapting to harsh industrial environments.
Parameter | Value |
|---|---|
Size | 37, 47, 57, 67, 77, 87, 97, 107, 127, 157, 167, 187 |
Power range | 0.18 KW - 200 KW |
Ratio | 3.4 – 280.6 |
Output Speed | 0.11 - 270 rpm |
Output torque | Up to 50000 N.m |
Input speed | Less than 2000 rpm |
Output shaft diameter | 25 mm - 120 mm |
Reduction stage | Two stages or three stages |
Weight | 11 KGS - 1700 KGS |
Ambient temperature | -15.00 °C ~ +50 °C |
Direction of rotation of gear output shaft | CW rotation or CCW |
Corrosion protection | Conservation according to norm |
Color | Blue or any color you need |
Our K series helical bevel gear reducer is optimized for heavy industrial applications, with specialized suitability for quarry and mining equipment, industrial agitators and mixing systems, heavy material handling lines, mineral processing facilities, construction machinery, and bulk material processing plants.
We operate a modern manufacturing facility with strict full-cycle quality control, from raw material forging to final precision testing. Our helical bevel gear motor for quarry complies with ISO9001:2008 international quality management standards, with CE certification to guarantee consistent performance. We maintain 200+ units of standard models in stock for immediate delivery, with a flexible production line to handle custom configurations and large-scale bulk orders for heavy industrial clients.
Minimum Order Quantity (MOQ): 1 PCS
Inventory: 200+ standard units in stock for immediate dispatch
Pricing: Negotiable based on configuration, order volume, and customization requirements
Accepted Payment Terms: T/T, L/C, DP, Western Union
Delivery Lead Time: 3-5 days for in-stock models, 10-15 days for custom configurations
Packaging: Customizable heavy-duty plywood case for safe shipping
Yes. This unit is purpose-built for heavy-duty applications, with a rigid cast iron casing, high-load gears, and wide temperature tolerance, fully capable of withstanding the harsh conditions of quarry and mining operations.
We offer both hollow shaft and solid shaft output options, with multiple mounting configurations to match your specific equipment integration requirements.
Yes. Our K series helical bevel gear reducer supports both CW and CCW rotation directions, providing full flexibility to match your drive system requirements.
