R37...167/ RX31-151
TAIXING

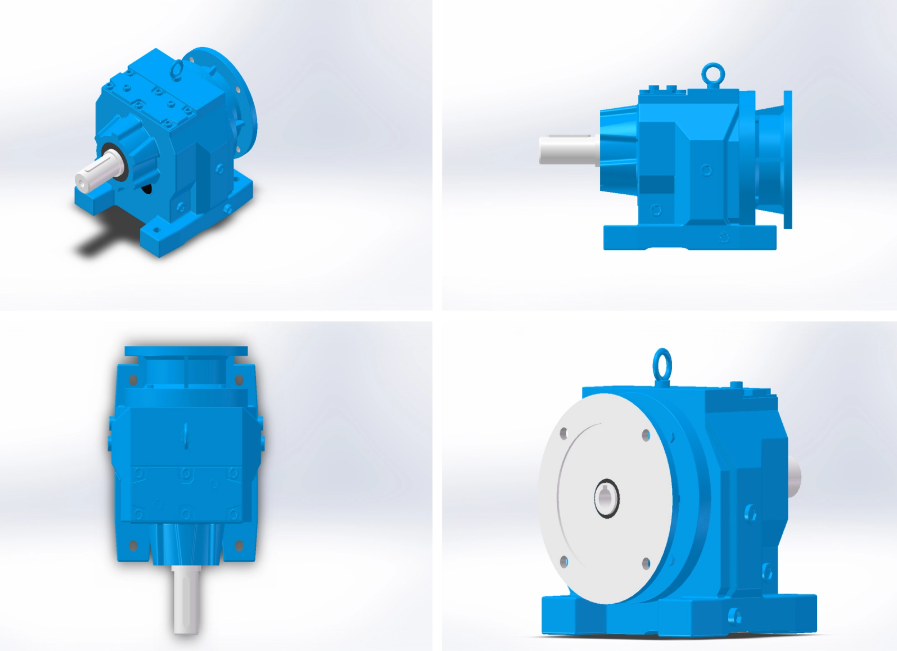

Based on a mature modular design concept, this inline helical gearmotor delivers precise speed reduction and torque amplification, with exceptional compatibility to match various servo motors, general-purpose motors, and power input components. Our inline helical gearmotor for automation lines perfectly adapts to the high-cycle, high-precision, long-term stable operation requirements of modern automated production, setting a new benchmark for drive engineering in the automation field.
The high power density design ensures maximum torque output in a compact housing, saving valuable installation space for compact automation equipment. 2-stage transmission achieves 96% efficiency (ratio 5-24.8), while 3-stage design reaches 94% efficiency (ratio 27.2-264), minimizing energy loss during long-term operation and reducing overall operating costs for industrial clients.
We offer reduced backlash options for models from R37 to R167, alongside the RX31-RX151 series, covering a comprehensive ratio range of 1.3-196.41 with precise grading. The RM series, specially engineered for agitating applications, expands the application scope of our gearmotors, meeting diverse needs of automated production links including mixing, conveying, and assembly.
Available in single-stage or multi-stage configurations, our high torque helical gear motor supports foot-mounted, flange-mounted, combined foot and flange mounting, as well as flange-mounted with extended bearing hub options. The gearbox housing uses high-strength cast iron, with gears crafted from 20CrMnTi with precision grinding, and shafts from 40Cr with carburizing and quenching treatment, ensuring exceptional wear resistance and long service life even under high-cycle automation operation.
Brand | TAIXING |
Model | R37...167/ RX31-151 |
Certification | CE / SGS / BV |
Place of Origin | CHINA |
Gearing Arrangement | Helical |
Output Torque | UP TO 18000N.m |
Rated Power | 0.18-160kw |
Input Speed | Less than 2000r/min |
Output Speed | 0.16-1028r/min |
Ratio | 1.3 - 196.41 |
Material of housing | Cast Iron |
Material of gear | 20CrMnTi with grinding |
Material of shaft | 40Cr with carburizing and quenching |
Mounting Type | Foot mounted, Flange mounted |
Input form | IEC input flange, direct with motor, shaft input |
Color | Blue RAL5010, Grey or other |
Warranty | 12 Months |
Supply Ability | 5000 Sets per Month |
Our foot mounted helical gearmotor and flange-mounted series are widely used in automation-focused industrial scenarios: automated assembly lines and intelligent production systems, workshop conveying and material handling equipment, packaging machinery and labeling equipment, electronic manufacturing and semiconductor production lines, robotic auxiliary positioning equipment, food and beverage automated processing lines, and textile printing automation equipment.
As a professional drive equipment manufacturer with decades of experience, we hold CE, SGS, and BV certifications, with a monthly production capacity of 5000 sets to meet bulk order demands from industrial clients. We implement a full-cycle quality control system, from raw material incoming inspection to precision machining, gear grinding, heat treatment, assembly, and final load testing. Every inline helical gear reducer we produce undergoes strict performance testing before delivery, ensuring consistent compliance with international quality standards.
Packaging: Standard export plywood case with anti-collision and moisture-proof treatment, suitable for long-distance international transportation
Loading Port: Ningbo / Shanghai, China
Lead Time: 25 days for orders of 1-2000 sets; lead time for orders over 2000 sets is negotiable
Customization: Customizable ratio, mounting method, input form, and color per client requirements
Warranty: 12-month product warranty with free after-sales technical support
Yes, we provide reduced backlash configurations for all R37 to R167 models, ideal for high-precision automation scenarios such as positioning and assembly.
Absolutely. Our gearmotors support customized IEC input flanges and shaft input designs, perfectly matching most mainstream servo and variable frequency motors on the market.
We support flexible MOQ for customized products, negotiable based on your specific customization needs and order scale.
