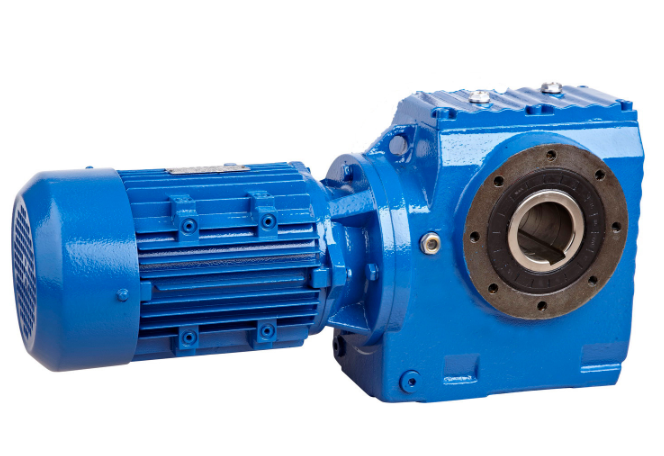

Delivering far higher transmission efficiency and mechanical strength than standard aluminum alloy worm gearboxes, this series is purpose-built to meet rigorous torque and speed demands in harsh industrial environments. With industry-leading gear precision and stable long-term performance, our helical worm gearbox for chemical industry has become the trusted drive choice for industrial equipment manufacturers and process system integrators worldwide.
Our cast iron helical worm gear reducer adopts an optimized helical-worm gear arrangement, which greatly reduces energy loss during transmission and ensures long-term economical operation for your equipment. Precision-machined gear sets minimize running resistance, cutting down energy consumption and total cost of ownership over the full service life.
Manufactured to DIN6 (ISO1328) gear precision standard, the DIN6 precision worm gearbox runs with extremely low vibration and noise, fully complying with strict industrial workplace safety regulations. The reinforced cast iron structure and high-strength gear materials deliver exceptional permitted overhung loads, adapting to heavy-load, continuous-running conditions in chemical production.
This series features a fully modular design, supporting multiple mounting configurations and shaft options to perfectly fit your existing equipment layout. No extensive equipment modification is needed, which significantly shortens your assembly cycle and reduces engineering costs.
Parameter | Specification Details |
Model Range | S37 to S97 |
Gear Precision | DIN6 (ISO1328) |
Gear Arrangement | Helical-worm |
Gearbox Casing Material | High-rigidity Cast Iron |
Gear Material | 20CrMnTi Alloy Steel |
Gear Hardness | HRC58 ~ 62 |
Shaft Material | 40Cr & 20CrMnTi Alloy Steel |
Heat Treatment Process | Carburizing and Quenching |
Transmission Ratio | 10.27 – 230.48 |
Mounting Options | Foot, flange, torque arm, hollow / solid shaft |
Certifications | CE, SGS, BV |
Customization | Color, ratio, mounting configuration on request |
The S Series Helical Worm Gearbox is specially optimized for chemical industry scenarios, with wide applications including chemical mixing and agitation equipment, industrial chemical material conveying systems, corrosion-resistant processing equipment, chemical pump transmission systems, industrial wastewater treatment facilities, fine chemical production lines, and pharmaceutical intermediate processing equipment.
As a professional industrial drive manufacturer, TAIXING holds complete in-house production capabilities from gear precision machining to finished product assembly. All our industrial helical worm gear drives are manufactured in strict accordance with international standards, with every production link subject to 3-level quality inspection. We use advanced CNC machining equipment and professional heat treatment lines to ensure consistent gear precision and material performance, with full traceability for every batch of products.
Minimum Order Quantity: 1 piece
Stock Availability: 300 sets in stock for regular models
Pricing: Negotiable based on order quantity and customization requirements
Payment Terms: T/T, L/C, DP or Western Union
Lead Time: 10 days for regular orders; customized orders subject to project scope
Packaging: Standard seaworthy plywood case
Yes, we support customized ratio solutions within 10.27 to 230.48 to match your specific torque and speed requirements.
Yes. The cast iron casing supports anti-corrosion surface treatment on request, and high-strength alloy steel gears have excellent corrosion resistance, suitable for most chemical production scenarios.
We provide a 12-month standard warranty for all S Series Helical Worm Gearbox products, with full after-sales technical support throughout the service life.
