F87
TAIXING

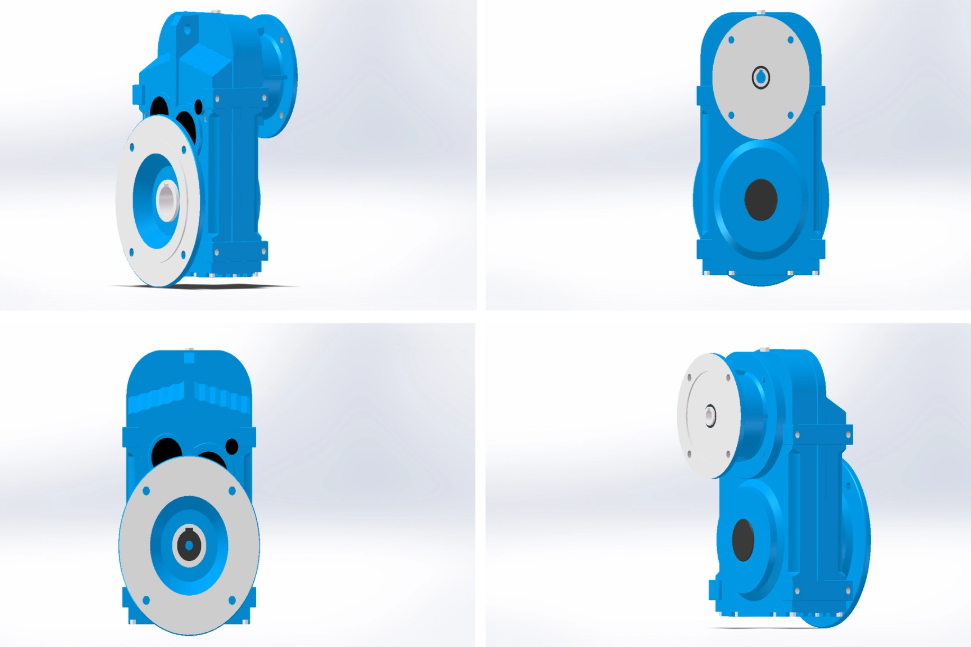

TAIXING F series parallel shaft helical gear unit is a modular-designed industrial transmission solution, specially optimized for the harsh working conditions of the ceramics industry. Covering model range F37-F157, this series of modular helical gear reducers integrates high-precision manufacturing, flexible configuration and heavy-duty performance, fully compliant with CE, ISO9001, BV and SGS international standards. All core gears adopt 20CrMnTi alloy steel, with carburizing treatment and precision gear grinding process, delivering reliable and long-lasting performance for continuous production. With power range from 0.18KW to 200KW, maximum output torque up to 18000N.m, and flexible vertical/horizontal installation layouts, this gear unit can be perfectly adapted to various ceramics production equipment and general industrial transmission scenarios.
The fully modular design supports flexible combination of transmission stages, shaft forms (solid mandrel or hollow shaft) and mounting methods, customizable to fit the limited installation space of ceramics processing equipment, and can be matched with continuous variable speed transmission to meet complex speed regulation needs.
After precision gear grinding, the gear accuracy reaches grade 6, with tooth surface hardness of 58-62HRC, which effectively reduces transmission vibration and noise, ensuring stable operation in long-term continuous production of ceramics workshops.
The 2-stage transmission achieves up to 96% transmission efficiency, and the 3-stage transmission reaches 94% efficiency, which greatly reduces energy consumption in long-term operation, and can be combined with 6-pole or 8-pole motors to achieve ultra-low output speed, meeting the needs of ceramics forming and polishing processes.
The standard speed ratio ranges from 3.81 to 273 (with 4-pole motor), and the combined two-stage reducer can achieve a speed ratio of more than 10000, covering the full-process transmission needs of ceramics production from raw material processing to finished product finishing.
Parameter |
Specification Details |
Model Range |
F37-F157 |
Gear Type |
Helical Gear |
Max Output Torque |
Up to 18000N.m |
Input Speed |
1400rpm (4-pole motor) |
Output Speed Range |
0.11-373rpm |
Standard Speed Ratio |
3.81-273, up to 10000+ (combined) |
Transmission Stage |
2-stage / 3-stage / Combined |
Mounting Type |
Foot Mounted / Flange Mounted, Vertical / Horizontal |
Housing Material |
High-Strength Cast Iron |
Motor Connection |
Flange Connection / Direct Connection |
Certification |
CE / ISO9001 / BV / SGS |
Color |
RAL5009 Blue or Customized |
Our helical gear unit for ceramic machinery is the core transmission component for the whole ceramics production chain, widely used in ceramic raw material mixing equipment, ceramic forming presses, ceramic sintering auxiliary systems, ceramic polishing and finishing lines, and ceramic glazing machinery. In addition, this series of industrial parallel shaft gearbox is also suitable for food grain machinery, printing and packaging machinery, three-dimensional garage equipment, environmental protection machinery, chemical equipment, metallurgical mining equipment, steel power equipment and other heavy-duty industrial scenarios.
As a professional industrial transmission equipment manufacturer, TAIXING has a complete R&D and production system for heavy duty helical gear reducers. All core gears are made of 20CrMnTi alloy steel, with strict carburizing heat treatment and precision gear grinding process, 100% full inspection of gear accuracy and hardness before assembly. We have a monthly production capacity of 5000 sets, with a complete quality management system certified by ISO9001, ensuring that each gear unit meets international industrial standards before delivery.
Minimum Order Quantity: 1 set, supporting sample orders for testing
Stock Availability: 200 units of standard models in stock, ready for shipment
Customization Service: Fully acceptable, including shaft form, housing color, mounting method and motor matching
Supply Capacity: 5000 pieces per month, supporting bulk orders for enterprise production lines
Delivery Time: 24-48 hours for stock orders, 15-20 working days for customized bulk orders
Packaging: Standard export wooden cases, suitable for global long-distance transportation
You can refer to our product catalogue for selection, or provide us with technical parameters such as required output torque, output speed, motor power and installation space, our professional engineering team will help you match the most suitable gear unit solution.
Yes, we support full customization of shaft form, mounting position, transmission ratio and motor connection, to perfectly match your existing equipment without additional modification.
For standard bulk orders, we can complete delivery within 7 working days; for fully customized bulk orders, the lead time is 15-20 working days, depending on the customization requirements.
