RX57
TAIXING

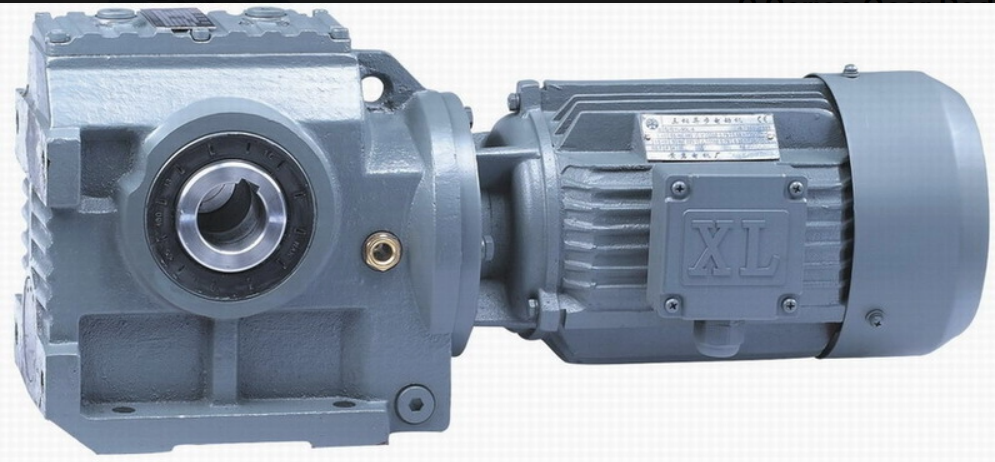

With a power range of 0.18-22kW, gear ratio range of 10.27-230.48, and maximum output torque up to 4000N.m, it fully addresses the core demands of textile machinery for precise speed regulation, low-noise operation, and long-term uninterrupted running. The reducer adopts high-strength cast iron casing, 20CrMnTi alloy steel gears, and carburizing and quenching heat treatment, achieving a surface hardness of HRC58~62, ensuring outstanding wear resistance and impact resistance in high-intensity textile production scenarios. It is compatible with multiple mounting configurations to fit the limited installation space of various textile equipment, becoming a trusted transmission core for global textile manufacturing enterprise users.
Ultra-high Transmission Precision & Continuous Operation Stability: With 5-6 grade gear precision (ISO1328), the textile industry gear reducer achieves minimal transmission error, ensuring consistent speed control for spinning, weaving and dyeing equipment, and supports 24/7 uninterrupted operation without performance degradation.
Low-noise & Compact Structure Design: The optimized helical-worm meshing structure greatly reduces operating noise, meeting the environmental requirements of textile workshops, while the integrated compact design adapts to the narrow installation space of various textile machinery.
Superior Load-bearing & Impact Resistance: The reinforced gear and shaft design delivers up to 4000N.m of output torque, effectively coping with frequent load fluctuations and start-stop impacts in textile production links, greatly reducing equipment failure rates.
Flexible Customization Capability: It supports customized adjustment of mounting type, shaft structure, color and other parameters, perfectly matching the unique transmission needs of different textile equipment models.
Size Series | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
Input Power Range (kW) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
Gear Ratio Range | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.5-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
Max Output Torque (N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
Core Structure Options | S, SA, SF, SAF, SAT, SAZ | ||||||
Universal Core Parameters | Gear Precision: 5-6 Grade (ISO1328); Gear Material: 20CrMnTi; Casing Material: Cast Iron; Hardness: HRC58~62 | ||||||
This high torque worm gear reducer is widely used in core textile manufacturing links, including textile spinning & weaving machinery, textile dyeing & finishing equipment, conveyor systems for textile production, automatic textile packaging lines, textile material handling equipment, and non-woven fabric production lines.
Our production base strictly follows ISO9001 quality management system, with full-process quality control from raw material incoming inspection to finished product delivery. We use precision CNC machining equipment and professional carburizing and quenching production lines, and each foot mounted worm gear reducer undergoes strict load test, noise detection and precision calibration before leaving the factory, ensuring that every product meets international standard requirements.
Minimum Order Quantity: 1 SET
Stock Availability: 200 SETS in ready stock
Production Capacity: 10000 PCS per month
Lead Time: Within 10 days after order confirmation
Payment Terms: T/T, L/C, DP or Western union
Packaging: Standard export plywood case
Yes, our reducer fully matches the installation dimensions and performance parameters of mainstream international brands, and can be directly replaced without modifying the equipment structure.
Absolutely. We can customize the gear ratio, mounting method, shaft structure and appearance color according to your actual working condition requirements, to achieve perfect adaptation to your equipment.
