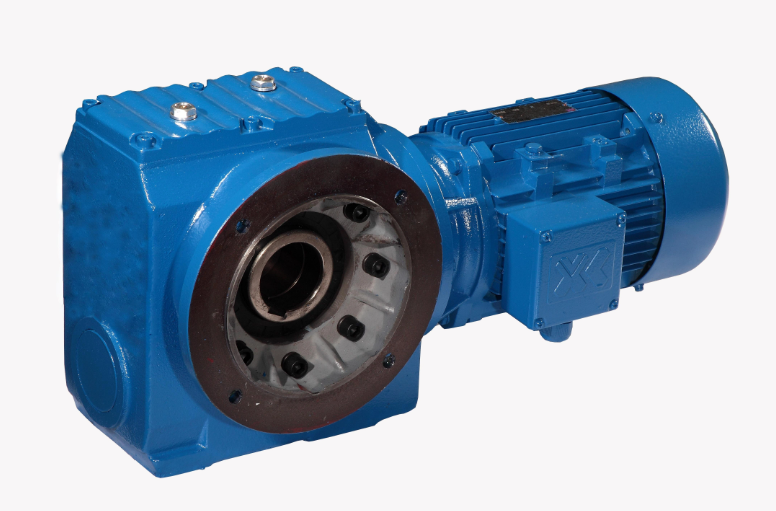

Built with a heavy-duty cast iron casing and precision-machined 20CrMnTi alloy steel gears, this series outperforms standard aluminum worm gearmotors in both transmission efficiency and mechanical durability. Designed to meet strict demands of high-cycle, precision-oriented production, our helical worm gearmotor for packaging industry is the preferred drive choice for packaging equipment manufacturers and automation system integrators.
Our modular helical worm geared motor is manufactured to DIN6 (ISO1328) gear precision standard, ensuring stable transmission ratio and accurate positioning control during high-frequency start-stop operations. This is critical for packaging equipment requiring consistent filling, labeling, and sealing accuracy, reducing product rejection rates and improving your production yield.
The optimized helical-worm gear structure delivers a compact right-angle drive layout, saving valuable installation space in your packaging equipment and perfectly adapting to tight layouts of automated packaging lines. Meanwhile, precision-ground gear sets minimize running vibration and noise, maintaining a quiet working environment that meets industrial workshop standards, even during 24/7 continuous operation.
This series offers a full range of design variants to fit diverse packaging equipment requirements, including foot-mounted, flange-mounted, solid shaft, hollow shaft, and torque arm configurations. Whether you need a standard model or a customized solution, our right angle helical worm gearmotor can be tailored to your exact equipment specifications, shortening your product development cycle.
Parameter | Specification Details |
Model Range | SA37 to SA97 |
Gear Precision | DIN6 (ISO1328) |
Gear Arrangement | Helical-worm |
Gearmotor Casing Material | Heavy-Duty Cast Iron |
Gear Material | 20CrMnTi Alloy Steel |
Gear Hardness | HRC58 ~ 62 |
Output Shaft Material | 40Cr & 20CrMnTi Alloy Steel |
Heat Treatment Process | Carburizing and Quenching |
Design Variants | S..Y, SA..Y, SF..Y, SAF..Y, SAT..Y, Shaft Input Series |
Certifications | CE, ISO9001 |
Customization | Color, shaft design, mounting configuration available |
S SERIES HELICAL-WORM GEARMOTOR ARE AVAILABLE IN THE FLLOWING DESIGNS
S..Y Foot-mounted helical-worm gear motor with solid shaft | SA..Y… Helical-worm gear motor with hollow shaft | SF…Y… Flange-mounted helical-worm gear motor with solid shaft |
SAF..Y… Flange-mounted helical-worm gear motor with hollow shaft | SAT…Y… Helical-worm gear motor with hollow shaft and torque arm | S(SF,SA,SAF,SAZ)S …. Shaft input helical-worm gear motor |
The S Series Helical Worm Gearmotor is purpose-built for packaging and automation scenarios, with core applications including automatic food and beverage packaging equipment, liquid and powder filling machines, high-speed labeling and coding machines, carton sealing and forming equipment, vertical and horizontal packaging machines, palletizing and wrapping systems, and conveying systems for packaging production lines.
TAIXING is a leading industrial drive manufacturer with decades of expertise in gearmotor production, boasting a monthly production capacity of 10000 pieces to support bulk orders from global industrial clients. We have a fully integrated in-house production system, from CNC gear machining and heat treatment to final assembly and performance testing. Every low cost industrial gear motor we produce undergoes strict multi-stage quality inspections, ensuring consistent performance and long service life. Our production system is ISO9001 certified, with full batch traceability for quality management.
Minimum Order Quantity: 1 piece
Stock Availability: 200 sets in stock for regular packaging industry models
Pricing: Negotiable based on order volume, customization requirements and project scale
Payment Terms: T/T, L/C, DP or Western Union
Lead Time: 10 days for standard orders; customized solutions subject to engineering confirmation
Packaging: Heavy-duty plywood case, suitable for long-distance sea and air transportation
We offer a full range of variants including foot-mounted solid shaft, hollow shaft, flange-mounted solid/hollow shaft, torque arm hollow shaft, and shaft input models to fit diverse installation needs.
Yes. The reinforced structure, high-strength alloy steel gears and optimized heat treatment give the gearmotor excellent impact resistance and fatigue durability, fully suitable for 24/7 high-cycle operation in automated packaging lines.
Yes. This series is an integrated gearmotor solution, we can provide matched motors according to your voltage, power and protection grade requirements, delivering a ready-to-install drive unit.
