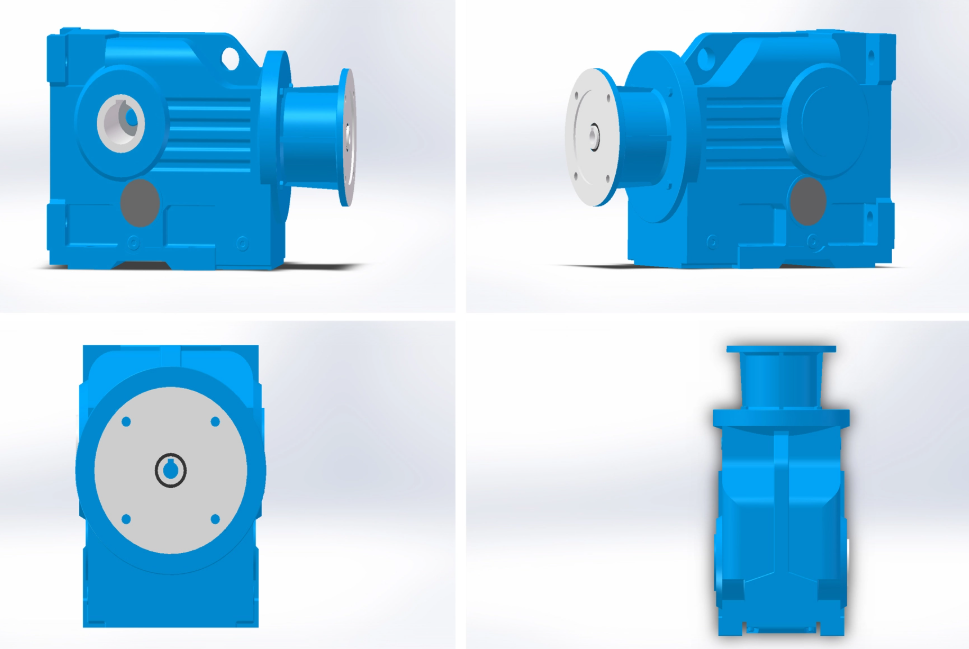

TAIXING K-Series Helical Bevel Geared Motor is a high-performance power transmission solution exclusively developed for industrial conveyor systems. Integrating high-precision helical bevel gear transmission and flexible modular design, this product is engineered to reduce motor speed while significantly boosting output torque, perfectly matching the demands of continuous and heavy-load conveying conditions. With CE, SGS and BV international certifications, our model range covers K37 to K187, making it the preferred transmission component for industrial business clients including conveyor equipment manufacturers and logistics system integrators worldwide.
Our high modular helical bevel geared motor adopts a building-block structure, which can be flexibly matched with various standard motors and compatible with different power input modes. It can be quickly adapted to the installation requirements of various conveyors, greatly shortening the equipment integration cycle and reducing the selection and transformation costs for clients.
The optimized gear meshing design endows the high torque helical bevel gear reducer with strong load-bearing capacity, stable transmission and ultra-low noise level. Even under 24/7 continuous operation of conveyors, it can maintain stable power output, effectively reduce equipment downtime and improve the operation efficiency of production lines.
The high-performance sealing structure effectively prevents the intrusion of dust and moisture, adapts to harsh industrial environments such as ports, mines and chemical plants, avoids lubricating oil leakage, extends the service life of the equipment, reduces maintenance frequency, and is suitable for a wide range of industrial application scenarios.
The energy efficient helical bevel geared motor achieves ultra-high transmission efficiency through precision gear machining, effectively reducing power loss and saving operation costs. Its low-maintenance design cuts down spare parts replacement and shutdown maintenance costs, realizing full-life cycle cost optimization for clients.
SIZE | Shaft Dia.(mm) Solid Hollow | Center Height | Output Flange Dia.(mm) | Power(kw) | Ratio | Permissible Torque(N.m） | Weight(KGS) | |
37 | φ25k6 | φ30h7 | 100 | φ110/160 | 0.18-3.0 | 5.36-106.38 | 200 | 11 |
47 | φ30k6 | φ35h7 | 112 | φ120/200 | 0.18-3.0 | 5.81-131.87 | 400 | 20 |
57 | φ35k6 | φ40h7 | 132 | φ155/250 | 0.18-5.5 | 6.57-145.14 | 600 | 27 |
67 | φ40k6 | φ40h7 | 140 | φ155/250 | 0.18-5.5 | 7.14-144.79 | 820 | 33 |
77 | φ50k6 | φ170 | 180 | φ170/300 | 0.37-11.0 | 7.24-292.18 | 1550 | 57 |
87 | φ60m6 | φ60h7 | 212 | φ215/350 | 0.75-22.0 | 7.19-197.18 | 2700 | 85 |
97 | φ70m6 | φ70h7 | 265 | φ260/450 | 1.1-30.0 | 8.95-176.05 | 4300 | 130 |
107 | φ90m6 | φ90h7 | 315 | φ304/450 | 3.0-45.0 | 8.74-141.46 | 8000 | 250 |
127 | φ110m6 | φ100h7 | 375 | φ350/550 | 7.5-90.0 | 8.68-146.07 | 13000 | 380 |
157 | φ120m6 | 120h7 | 450 | φ400/660 | 11.0-160.0 | 12.65-150.41 | 18000 | 610 |
167 | φ160m6 | 140h7 | 500 | φ800 | 11.0-200.0 | 17.28-163.91 | 32000 | 1015 |
187 | φ190m6 | 160h7 | 600 | φ800 | 18.5-200.0 | 17.27-180.78 | 50000 | 1700 |
The helical bevel geared motor for conveyors is the core transmission component for various conveying systems, and is also widely used in:
Harbor and shipping logistics equipment
Hoisting and transport machinery
Electric power generation systems
Coal mining equipment
Cement and construction material production lines
Paper making and light industry machinery
Chemical and environmental protection equipment
As a professional transmission equipment manufacturer, TAIXING has a full-process automated production line, with full-process quality control from box casting, gear processing to finished product inspection. The box adopts automated casting, artificial aging treatment and three-coordinate detection to ensure installation accuracy and structural rigidity. Gears are made by precision forging, carburizing and quenching (HRC58-62) and gear grinding technology, with accuracy up to grade 6. Each product undergoes full-performance testing before leaving the factory, complying with international standards.
Stock Availability: 200 SETS of standard models in stock, ready for immediate shipment
Minimum Order Quantity: 1 SET for standard models, supporting customized batch orders
Customization Support: Non-standard ratio, shaft size and mounting design available according to client’s technical requirements
Lead Time: 1-3 working days for standard models, 7-15 working days for customized orders
Certification: Full set of CE, SGS, BV certification documents provided with each shipment
Yes. Our high modular design supports flexible matching with most mainstream brand motors, and we can also customize the input flange and shaft size according to your motor parameters to achieve seamless integration.
We provide a 12-month warranty for all standard products from the date of delivery. During the warranty period, we provide free replacement of defective parts caused by manufacturing defects, and lifelong technical support.
Absolutely. Our technical team can tailor the gear motor parameters, sealing grade and mounting structure according to your working conditions such as high dust, high humidity, heavy load and continuous operation, to meet your specific application needs.
