K87
TAIXING

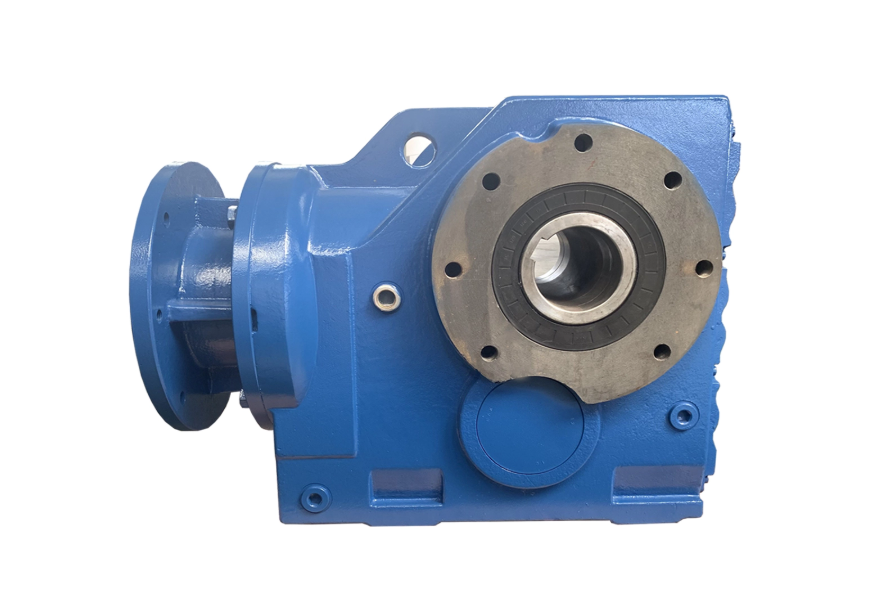

TAIXING K-Series 90 Degree Gearbox is a right-angle helical bevel speed reduction device exclusively developed for construction machinery and heavy-load working conditions. Adopting an innovative building-block modular design, it can be flexibly adapted to various power sources and construction machinery, with core functions of realizing 90-degree right-angle transmission, reducing speed and greatly increasing output torque. It perfectly solves the core pain points of limited installation space and heavy-load impact resistance of construction machinery, and is a cost-effective transmission solution for commercial buyers including engineering project contractors and machinery manufacturing plants.
Our 90 degree right angle gearbox for construction machinery adopts a 90-degree right-angle transmission structure, which greatly saves installation space, is perfectly suitable for equipment with limited installation space such as construction machinery and agricultural and forestry machinery, and can be flexibly installed in horizontal, vertical and other directions without additional modification of the equipment body, greatly reducing the equipment design and transformation costs.
Specially designed for the harsh working conditions of construction machinery such as heavy load, frequent start-stop and large impact load, the optimized spiral bevel gear meshing structure has ultra-high rigidity and impact resistance, can stably withstand instantaneous overload, and can maintain reliable power output even in harsh construction site conditions, effectively extending the service life of the equipment and reducing fault downtime.
The high precision helical bevel 90 degree speed reducer adopts grade 6 precision machining technology for gears, with stable transmission, small backlash and high control accuracy. At the same time, it greatly reduces the operating noise, meeting the noise and accuracy requirements of multiple scenarios such as construction machinery, food processing and wood processing.
The building-block modular design can flexibly match various mainstream motors, hydraulic motors and other power sources, support multi-model combination and connection, and can customize parameters such as speed ratio, shaft diameter and installation mode according to the needs of different construction machinery, with strong adaptability to meet diversified engineering application needs.
Model | Solid Shaft Dia. (mm) | Hollow Shaft Dia. (mm) | Center Height (mm) | Power Range (kW) | Ratio Range | Max Permissible Torque (N·m) | Core Mounting Types |
K67 | φ40k6 | φ40h7 | 140 | 0.18-5.5 | 7.14-144.79 | 820 | Foot/Flange Mounted |
K87 | φ60m6 | φ60h7 | 212 | 0.75-22.0 | 7.19-197.18 | 2700 | Foot/Flange Mounted |
K97 | φ70m6 | φ70h7 | 265 | 1.1-30.0 | 8.95-176.05 | 4300 | Foot/Flange Mounted |
K107 | φ90m6 | φ90h7 | 315 | 3.0-45.0 | 8.74-141.46 | 8000 | Foot/Flange Mounted |
K127 | φ110m6 | φ100h7 | 375 | 7.5-90.0 | 8.68-146.07 | 13000 | Foot/Flange Mounted |
K157 | φ120m6 | φ120h7 | 450 | 11.0-160.0 | 12.65-150.41 | 18000 | Foot/Flange Mounted |
The 90 degree gearbox for construction machinery is the core transmission component for all kinds of engineering equipment, and is also widely used in:
Construction machinery (excavators, loaders, concrete mixing equipment, road construction machinery)
Food processing production lines
Wood processing machinery
Agricultural and forestry equipment
Bulk material conveyors
Crane and mineral processing machinery
TAIXING has advanced precision transmission equipment processing lines, with full-process process control for heavy-load working conditions. For box processing, we adopt full-process mold casting, artificial aging treatment, CNC machining center precision machining, and three-coordinate detector full-size inspection to ensure the box rigidity and installation accuracy, adapting to vibration and impact in harsh working conditions. For gear and gear shaft processing, we adopt precision forging, normalizing, carburizing and quenching (HRC58-62), precision gear grinding technology, with gear accuracy up to grade 6. Each 90 degree gearbox undergoes full-item testing such as load, noise and sealing before leaving the factory, ensuring 100% compliance with quality standards.
Stock Availability: 300 UNITS of standard engineering models in stock, supporting fast delivery
Minimum Order Quantity: 1 UNIT for standard models, accepting small batch customized orders for engineering projects
Customization Support: Non-standard shaft size, ratio, mounting structure and sealing grade customization for special engineering working conditions
Lead Time: 1-3 working days for standard models, 5-12 working days for customized project orders
After-sales: Full technical support for installation and commissioning, professional after-sales team responds to client needs within 24 hours
Yes. Our gearbox is specially designed for construction machinery, with reinforced box structure, high-performance sealing system and heavy-duty gear design, which can adapt to harsh working conditions such as high dust, high vibration, heavy load and frequent start-stop, ensuring long-term stable operation.
Absolutely. Our modular design supports full customization of input and output shaft size, flange dimensions, mounting holes and other parameters, which can be fully matched with your existing equipment structure without additional modification.
Our K-Series 90 degree gearbox covers a wide torque range, with the maximum permissible torque up to 50000 N·m for the largest model, which can fully meet the heavy load requirements of various construction machinery and lifting equipment.
