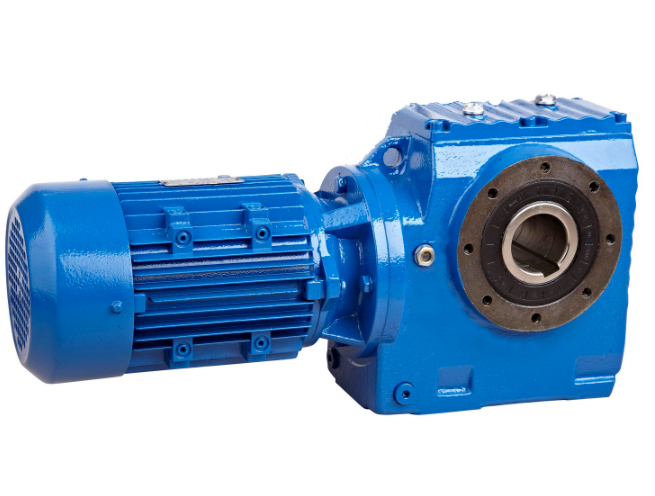

This industry-specific solution combines the high efficiency of helical gears with the stable transmission of worm gear sets, delivering superior performance and mechanical strength over standard aluminum worm gearboxes. With strict compliance to international transmission standards, this pharmaceutical grade gear reducer meets the rigorous demands of precision, low noise, and continuous stable operation in pharmaceutical production environments, making it the preferred transmission solution for industrial enterprises in the pharmaceutical and fine chemical sectors.
Engineered with gear precision grade 5-6 (ISO1328), our helical worm gearbox for pharmacy ensures minimal transmission error and ultra-low operating noise, fully adapting to the strict environmental requirements of clean workshops and sterile pharmaceutical production lines. The optimized gear tooth profile reduces vibration and wear, maintaining long-term precision stability during continuous operation.
The fully modular structure supports flexible customization of transmission ratios, mounting methods, and shaft configurations, perfectly matching various pharmaceutical equipment with different installation space and torque requirements. It can also be combined with other transmission units to meet customized speed regulation needs.
The gearbox adopts a high-strength cast iron casing, with core gears made of 20CrMnTi alloy steel, processed by carburizing and quenching to reach a hardness of HRC58~62. The output shaft uses 40Cr and 20CrMnTi alloy steel, with excellent impact resistance and fatigue resistance, effectively extending the service life and reducing maintenance costs for pharmaceutical manufacturers.
MOQ | 1PCS |
Price | Negotiation |
Payment terms | T/T, L/C,DP or Western union |
Supply ability | 10000 Pcs per a month |
Delivery time | 10days |
Package detail | Standard export Plywood case |
Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
Structure | S SA SF SAF SAT SAZ | ||||||
Input power rating (kw) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
(Ratio) | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.5-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
Max torque (N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
This S Series helical worm gear reduction is widely used in core pharmaceutical production links and supporting equipment, including tablet pressing machines, sterile liquid filling equipment, pharmaceutical mixing and blending systems, medical product packaging lines, sterile material conveying systems, and fine chemical dosing equipment. It is also suitable for other precision production scenarios with strict requirements for low noise and stable transmission.
With over 28 years of expertise in high-performance power transmission equipment, we are a professional manufacturer with ISO9001 and CE certifications, and a member of the China General Reducer Machinery Association. Our production base is equipped with advanced processing and testing equipment, supported by over 300 professional employees, with a monthly production capacity of 10,000 units. Every pharmaceutical grade gear reducer undergoes strict full-cycle quality control, from raw material incoming inspection to heat treatment processing, precision machining, and final load testing, ensuring consistent product quality that meets global industrial standards.
Minimum Order Quantity: 1 piece
Pricing: Negotiable based on order volume and customization requirements
Payment Terms: T/T, L/C, DP, Western Union
Delivery Time: 10 days for standard orders
Packaging: Standard export plywood case, suitable for long-distance international transportation
Supply Capacity: 10,000 pieces per month
Yes, our modular design supports full customization of gear ratio, mounting method, shaft type, and surface color to perfectly match your unique pharmaceutical equipment requirements.
We provide a standard 12-month warranty for all products, along with lifetime technical support and after-sales service to ensure stable operation of your production lines.
